SGZ Cold Formed Sheet Piles

SGZ Cold Formed Sheet Piles

The Advantages of SGZ section cold formed sheet piles are:

  • section cold formed sheet piles have the highest ratio of strength to weight, they are most economical where bending resistance is a determining factor
  • Suitable for use in permanent structures
  • Wide range of up to 5226cm3/m
  • Maximum length up to 35m

Specifications



Section Width Height Thickness Sectional Area Weight Weight Moment of Inertia Section Modulus

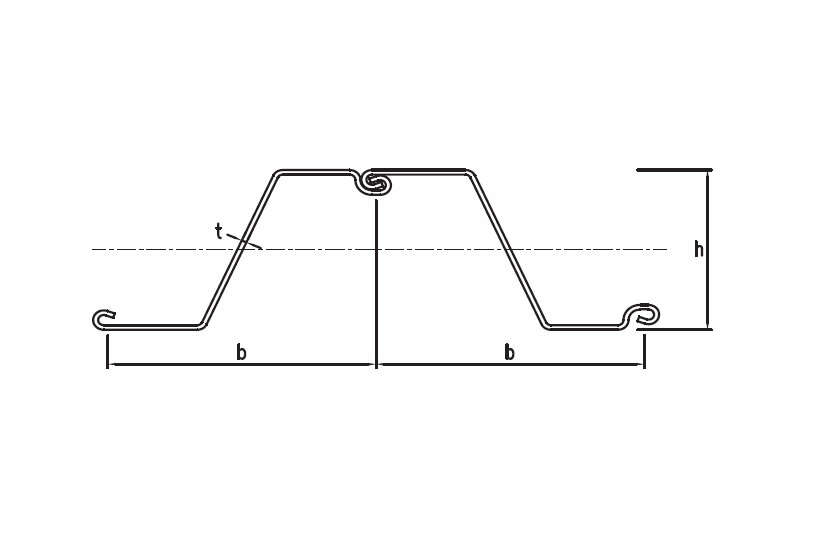

b h  t
mm mm mm cm2/m kg/m kg/m2 cm4/m cm3/m
SGZ 11-1 575 260 8.8 128.7 58.1 101 14300 1100
SGZ 11-2 575 260 9.5 144 62 113 14320 1140
SGZ 12-1 670 302 8.5 126 66.1 99 18120 1200
SGZ 12-2 770 344 8.5 120 72.6 94 21414 1245
SGZ 12-3 575 260 10.2 145.8 65.8 114 15600 1200
SGZ 13-1 670 303 9.5 137 72 107.5 19695 1300
SGZ 13-2 770 344 9 126 76.1 98.8 22360 1300
SGZ 13-3 575 260 10.8 150 67.9 118 16250 1250
SGZ 14-1 670 304 10.5 148.9 78.3 116.9 21280 1400
SGZ 14-2 770 345 9.5 131.5 79.5 103.2 23374 1355
SGZ 14-3 770 345 10 137 82.9 107.7 24236 1405
SGZ 14-4 650 320 8 120 61 93.8 22080 1380
SGZ 15-1 700 420 7 112.8 62 88.6 31080 1480
SGZ 16-1 575 350 8.5 136.3 61.5 107 28000 1600
SGZ 17-1 630 379 8.5 137.1 67.8 107.6 31592 1666
SGZ 17-2 700 420 8.5 133 73.1 104.4 36330 1730
SGZ 17-3 575 350 9 142 64.3 111.8 28875 1650
SGZ 17-4 575 370 9 148 66.9 116 31912 1725
SGZ 17-5 575 350 9.5 149 67.3 117 29750 1700
SGZ 17-6 675 430 8.5 141.4 74.9 111 36679 1706
SGZ 18-1 630 380 9.5 150 74.4 118 34200 1800
SGZ 18-2 700 420 9 139.2 76.5 109 37800 1800
SGZ 18-3 575 350 9.8 154 69.5 120.9 30625 1750
SGZ 18-4 575 350 10 159 71.9 125 31500 1800
SGZ 18-5 675 420 9 150 79.5 117.8 37905 1805
SGZ 18-6 630 381 10 157 77.8 123 35624 1870
SGZ 18-7 700 440 9 141 77.5 110.7 40546 1843
SGZ 18-8 640 385 8 127 64 100 34939 1815
SGZ 19-1 630 381 10.5 163 81 128.6 36957 1940
SGZ 19-2 700 421 9.5 145.6 80 114.3 39363 1870
SGZ 19-3 675 390 10 157.8 83.6 123.9 36367 1865
SGZ 20-1 700 421 10 152 83.5 119 41048 1950
SGZ 23-1 575 350 11 181 81.8 142.3 40600 2320
SGZ 24-1 700 459 11.2 174 95.7 136.7 55768 2430
SGZ 24-2 575 350 11.5 189 85.1 148 42000 2400
SGZ 25-1 630 480 10.5 185 91.5 145 59040 2460
SGZ 25-2 575 350 12 193.6 87.4 152 43400 2480
SGZ 25-3 575 350 12.5 197 89.1 155 44450 2540
SGZ 25-4 675 430 11.5 182.5 96.7 143 60240 2510
SGZ 26-1 630 470 11.5 198 97.9 155 61218 2605
SGZ 26-2 700 460 12.2 187 102.9 147 59800 2600
SGZ 26-3 575 350 12.5 201 90.9 158 44625 2550
SGZ 26-4 575 350 13 206 93.3 162 45500 2600
SGZ 26-5 675 430 12 191 101.2 150 55900 2600
SGZ 27-1 675 460 12 200 106.1 157 62100 2700
SGZ 28-1 630 440 12.5 212 105 167 60720 2760
SGZ 28-2 700 461 13.2 200 110 157 63618 2760
SGZ 34-1 675 485 12 211.7 112.1 166.2 83057 3425
SGZ 35-1 675 485 12.8 218 115.9 171.7 84875 3500
SGZ 36-1 675 485 13.2 225.5 119.5 177 87300 3600
SGZ 37-1 700 499 13.5 226 124.2 177.4 92439 3705
SGZ 37-2 675 485 13.8 234 124.1 183 89725 3700
SGZ 38-1 675 485 14 240 127.2 188 91665 3780
SGZ 39-1 700 560 13.5 240 131.9 188 109200 3900
SGZ 41-1 700 560 14 254 139.5 199 114660 4095
SGZ 46-1 580 540 15 292 132.6 229 124200 4600
SGZ 48-1 580 570 15.5 307 139.6 240.7 137085 4810
SGZ 50-1 580 580 16 322 146.7 253 145580 5020
SGZ 52-1 700 550 16 305.2 167.7 239.6 143742 5226



Tolerances on shape and dimensions of cold formed sheet pile are based on standard BS EN 10249-2.

Available Steel Grade:

BS EN 10025:
S235 / S275 / S355 / S390 / S420 / S460

Low Corrosion Steel: ASTM A690 Marine Steel Grade (345 / 390 / 430)
