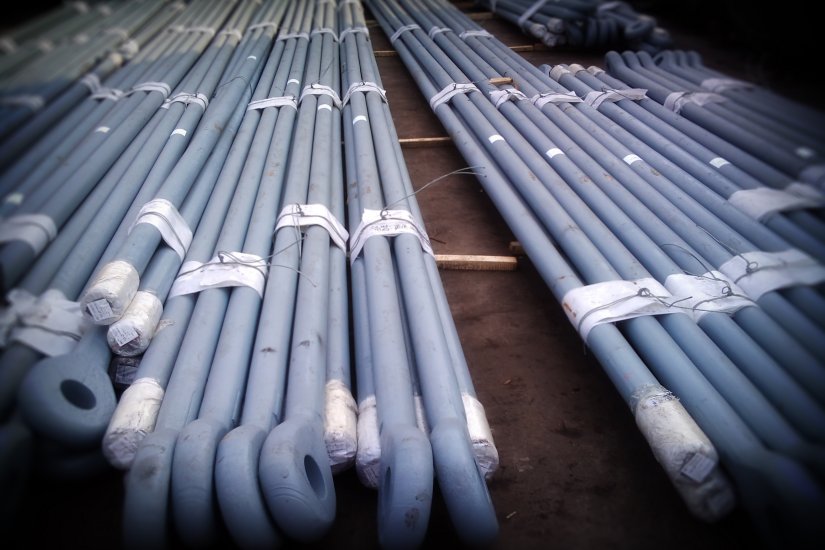

Anchorage System - Tie Rods

Upset round steel tie rods have proven itself as a safe and economic anchoring solution



Specifications

Tension
Grade		 Nominal
Diameter		 Min Yield
Strength		 Min Tensile
Strength		 Min
Elongation		 Reduction
of Area		 Impacting Energy J
mm MPa MPa % % 20oC 0oC -20oC -40oC -50oC
345 20 - 210 345 470 21 50 34 34 34 27 -
460 20 - 210 460 610 19 50 - 50 45 34 27
550 20 - 180 550 750 17 50 - 39 39 27 27
650 20 - 150 650 850 15 45 - 34 34 27 27
