SLL Cold Formed Sheet Piles
The Advantages of SLL section cold formed sheet piles are:
- SLL section cold formed sheet piles are specially designed for canalization, permeability cut off wall and riverbank protection structure
- The joint of the SLL section is left-right asymmetric and allows one-directional installation, ease of piling and handling
Specifications

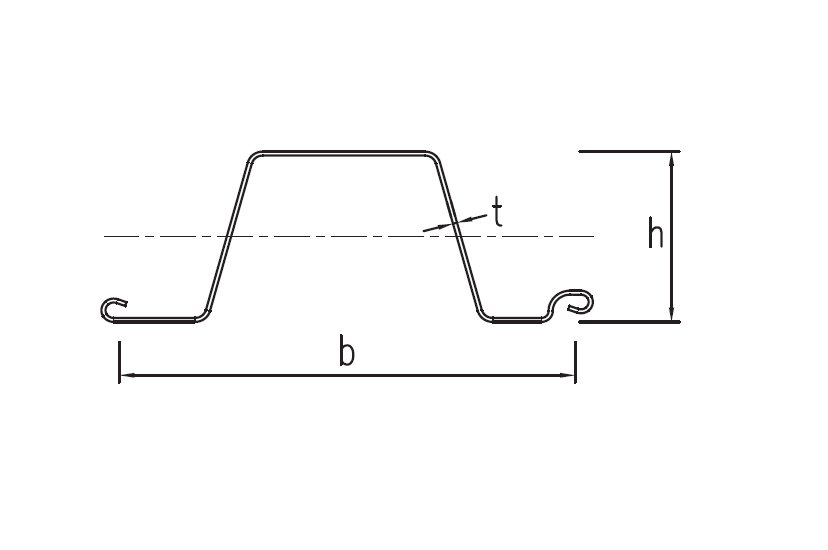

Section | Width | Height | Thickness | Sectional Area | Weight | Weight | Moment of Inertia | Section Modulus |
b | h | t | ||||||
mm | mm | mm | cm2/m | kg/m | kg/m2 | cm4/m | cm3/m | |
SLL 2-1 | 700 | 146 | 4 | 56.1 | 30.8 | 44 | 1945 | 266 |
SLL 2-2 | 900 | 155 | 4 | 53.2 | 37.7 | 41.8 | 2415 | 284 |
SLL 3-1 | 700 | 147 | 5 | 70.3 | 38.6 | 55.2 | 2427 | 330 |
SLL 3-2 | 700 | 148 | 6 | 84.1 | 46.2 | 66 | 2907 | 392 |
SLL 4-1 | 600 | 250 | 3.5 | 60.9 | 28.7 | 47.8 | 5883 | 470 |
SLL 4-2 | 700 | 149 | 7 | 98.1 | 53.9 | 77 | 3352 | 450 |
SLL 5-1 | 700 | 150 | 8 | 112.1 | 61.6 | 88 | 3814 | 508 |
SLL 5-2 | 705 | 152 | 8 | 113.1 | 62.6 | 88.8 | 3950 | 519 |
SLL 5-3 | 750 | 250 | 4 | 63.6 | 37.4 | 49.9 | 6582 | 526 |
SLL 5-4 | 600 | 250 | 4 | 69.7 | 32.8 | 54.7 | 6711 | 537 |
SLL 6-1 | 700 | 251 | 5 | 82.5 | 45.4 | 64.8 | 8408 | 670 |
SLL 6-2 | 750 | 251 | 5 | 81 | 47.7 | 63.6 | 8441 | 672 |
SLL 7-1 | 921 | 252 | 6 | 91.2 | 65.9 | 71.6 | 9941 | 789 |
SLL 7-2 | 750 | 252 | 5.7 | 93.8 | 55.2 | 73.6 | 9604 | 763 |
SLL 8-1 | 750 | 252 | 6 | 98.1 | 57.8 | 77 | 10138 | 804 |
SLL 8-2 | 750 | 252 | 6.2 | 101.4 | 59.7 | 79.6 | 10470 | 830 |
SLL 9-1 | 750 | 253 | 7 | 115.2 | 67.8 | 90.4 | 11810 | 933 |
SLL 9-2 | 900 | 253 | 7 | 107.6 | 76 | 84.5 | 11607 | 917 |
SLL 9-3 | 700 | 311 | 5.5 | 99.4 | 54.6 | 78 | 14634 | 939 |
SLL 9-4 | 900 | 312 | 7 | 92.9 | 65.6 | 72.9 | 13931 | 893 |
SLL 10-1 | 750 | 254 | 8 | 131.5 | 77.4 | 103.2 | 13345 | 1050 |
SLL 10-2 | 900 | 254 | 8 | 122.8 | 86.8 | 96.4 | 13138 | 1034 |
SLL 10-3 | 900 | 313 | 7 | 109.2 | 77.2 | 85.7 | 16317 | 1042 |
SLL 11-1 | 750 | 255 | 9 | 150.2 | 88.4 | 117.9 | 15256 | 1196 |
SLL 11-2 | 900 | 255 | 9 | 140 | 98.9 | 109.9 | 14983 | 1175 |
SLL 11-3 | 700 | 312 | 6.5 | 117.7 | 64.7 | 92.4 | 17327 | 1108 |
Tolerances on shape and dimensions of cold formed sheet pile are based on standard BS EN 10249-2.
S235 / S275 / S355 / S390 / S420 / S460
Low Corrosion Steel: ASTM A690 Marine Steel Grade (345 / 390 / 430)
Available Steel Grade:
BS EN 10025:S235 / S275 / S355 / S390 / S420 / S460
Low Corrosion Steel: ASTM A690 Marine Steel Grade (345 / 390 / 430)
